TIE PLATES (2K-7.2K)

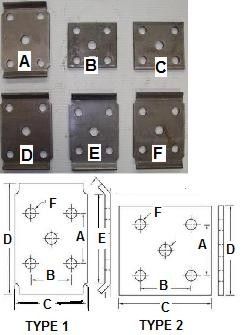

U-bolt tie plates used for securing leaf springs to axle. Specifications and dimensions in table below are for reference only.
| SKU # | Description | Ref. | Type | Axle | A | B | C | D | Mfg# |
|---|---|---|---|---|---|---|---|---|---|
| 854-1210 | TIE PLATE 1-3/4" SPRING | A | 1 | 3.00" | 3.62" | 2.38" | 3.75" | 5.92" | TP300175 |
| 854-1214 | TIE PLATE 1-3/4" SPRING | B | 2 | 1.75" | 2.31" | 2.31" | 3.75" | 3.50" | TP175175 |
| 854-1220 | TIE PLATE 2" SPRING | D | 1 | 3.00" | 3.56" | 2.59" | 4.00" | 5.92" | TP300200 |
| 854-1230 | TIE PLATE 1-3/4" SPRING | E | 1 | 2.38" | 2.94" | 2.31" | 3.75" | 5.92" | TP238175 |
| 854-1240 | TIE PLATE 2" SPRING | F | 1 | 2.38" | 2.94" | 2.56" | 4.00" | 5.92" | TP238200 |
| 854-1209 | TIE PLATE 1-3/4" SPRING | B | 2 | 2.00" | 2.63" | 2.38" | 3.50" | 3.50" | TP-200175-T2 |
| 854-0209 | TIE PLATE 2" SPRING 9/16" HOLE | A | 1 | 3.00" | 3.56" | 2.59" | 4.00" | 5.92" | TP-300209 |
| 854-0175 | TIE PLATE 1-3/4" SPRING 9/16" HOLES | D | 1 | 2.00" | 2.63" | 2.38" | 4.00" | 5.92" | TP-200175 |
| Product Name | TIE PLATES (2K-7.2K) |
|---|---|
| SKU | TIE PLATES (2K-7.2K) |
