ACTUATOR UFP AND PARTS

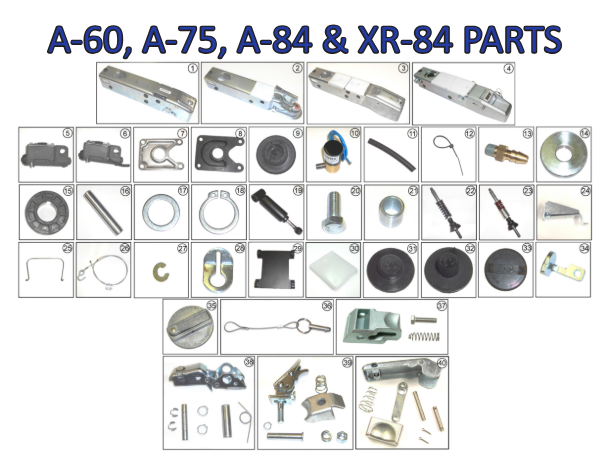

**ITEMS ON THIS PAGE MAY BE SPECIAL ORDER ONLY**Inner members and parts for UFP actuators (A-60, A-75, A-84 & XR 84)
| SKU # | Description | Pic # | Mfg# |
|---|---|---|---|
| 857-9060 | A-60 INNER SLIDE ASSEMBLY DRUM | 1 | 099-060-00 |
| 857-9065 | A-60 INNER SLIDE ASSEMBLY DISC | 1 | 099-060-20 |
| 857-4772 | A-70 & A-75 INNER SLIDE ASSEMBLY | 2 | 47720U |
| 857-1756 | A-60 DRUM BRAKE MASTER CLYINDER | 5 | 054-102-00 |
| 857-1757 | A-60 DISC BRAKE MASTER CLYINDER | 6 | 054-127-00 |
| 857-3430 | A-60 MASTER CYLINDER COVER PLATE | 7 | 34300U |
| 857-3228 | MASTER CYLINDER RESERVOIR DIAPHRAGM | 8 | 054-125-00 |
| 857-2286 | MASTER CYLINDER RESERVOIR PLUG | 9 | 046-152-00 |
| 857-4022 | BACK-UP SOLENOID, COIL ONLY | 10 | 054-140-22 |
| 857-3450 | A-60 SOLENOID DRAIN TUBE | 11 | 071-784-00 |
| 857-2269 | NYLON CALE TIE | 12 | 027-063-00 |
| 857-3257 | ZERK MINI-BARB # 10-32 | 13 | 034-350-00 |
| 857-3437 | A-60 ZINC PLATED FRONT ROLLER | 14 | 014-154-00 |
| 857-3231 | REAMED PLASTIC REAR ROLLER | 15 | 014-141-00 |
| 857-3407 | ZINC PLATED ROLLER PIN | 16 | 056-042-00 |
| 857-3255 | ROLLER PIN ZINC PLATED WASHER | 17 | 005-167-00 |
| 857-2262 | RETAINING RING EXTERIOR .689" | 18 | 069-128-00 |
| 857-3260 | A-60 SHOCK ABSORBER | 19 | 052-009-00 |
| 857-3229 | 3/8"-16 X 7/8" PLATED BOLT | 20 | 32291U |
| 857-4301 | A-60 SHOCK BUSHING | 21 | 033-092-00 |
| 857-3511 | A-60 PUSH ROD SINGLE AXLE (DISC) & TANDEM AXLE (DRUM) | 22 | 35112U |
| 857-3514 | A-60 PUSH ROD FOR TANDEM AXLE (DISC) | 23A | 097-033-00 |
| 857-5113 | PUSH ROD FOR TRIPLE AXLE (DISC) | 23B | 35113U |
| 857-4378 | A-60 PUSH ROD RELEASE BRACKET | 24 | 071-781-00 |
| 857-2546 | SAFETY SPRING RELEASE BRACKET | 25 | 32546U |
| 857-3226 | A-60 BREAK-AWAY CABLE 17" | 26 | 071-195-00 |
| 857-4011 | A-75 & A-84 BREAK-AWAY CABLE 15" | 26 | 071-196-00 |
| 857-4355 | BREAK-AWAY CABLE CLIP | 27 | 34355U |
| 857-3438 | A-60 CABLE ATTACHMENT PLATE | 28 | 34380U |
| 857-2592 | A-60 FRONT TOP WEAR PAD | 29 | 014-142-00 |
| 857-4771 | A-70 & A-75 TOP WEAR PAD | 30 | 47710U |
| 857-0226 | THIN SIDE WEAR PAD | 31 | 32260U |
| 857-0263 | THICK TOP & BOTTOM WEAR PAD | 32 | 32263U |
| 857-3254 | OUTER MEMBER PLASTIC CAP | 33 | 097-022-00 |
| 857-3455 | A-60 SIDE LOCKOUT KEY | 34 | 34557U |
| 857-3435 | A-60 TOP LOCKOUT CAP | 35 | K71-072-00 |
| 857-3636 | A-60 REPLACEMENT LATCH KIT | 38 | 071-204-00 |
| 857-6369 | A-75 REPLACEMENT LATCH | 39 | 36369U |
| 857-2722 | MASTER CYLINDER W/ B-U SOLENOID (DISC) | 054-127-22 |
| Product Name | ACTUATOR UFP AND PARTS |
|---|---|
| SKU | ACTUATOR UFP AND PARTS |
